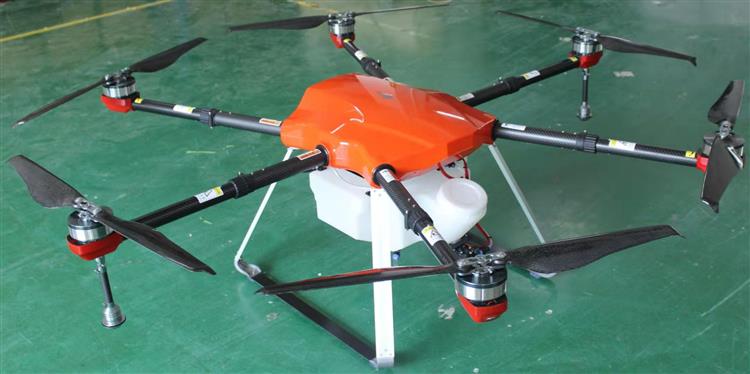

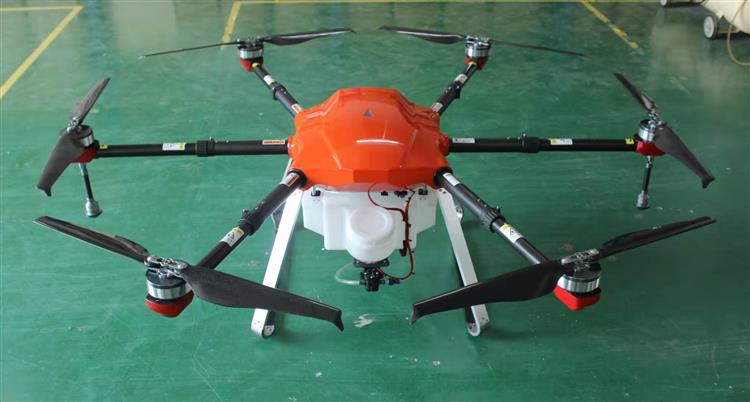

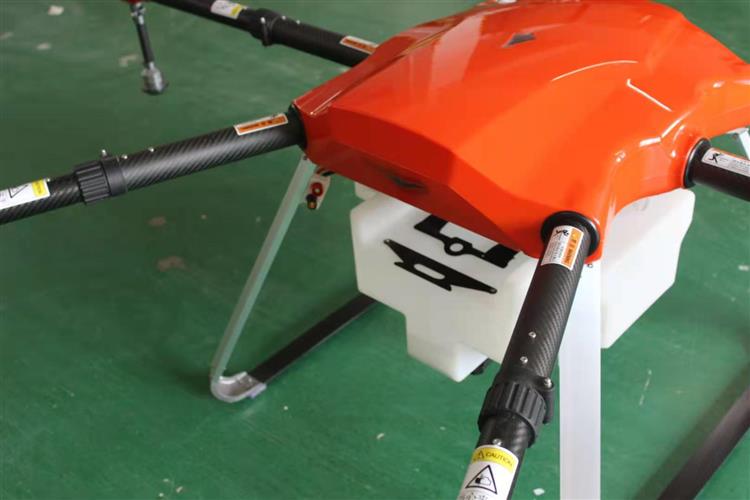

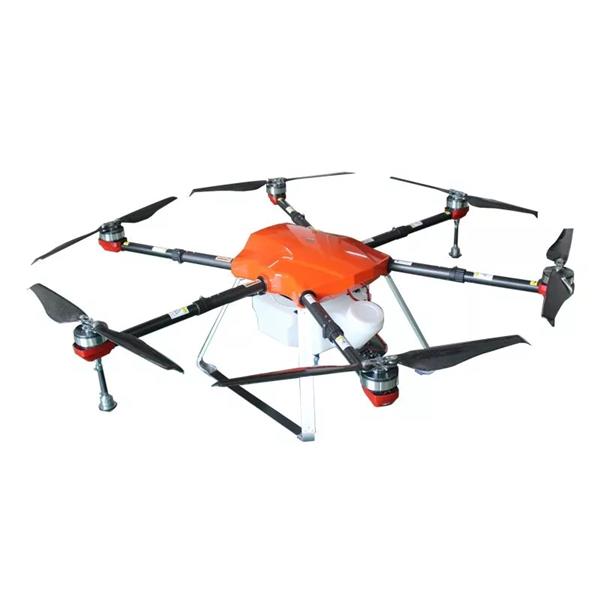

Agricultural chemical spraying drone

• ID: 0138

• Category: Agricultural UAV

• Viewed: 1870

• Price: ---


22 liter 6 axis full load agricultural drone agricultural sprayer agricultural chemical spraying drone

Detail: Agricultural chemical spraying drone

Product parameter

-22A technical parameters
Wheelbase
1850mm
Scale up
1920mm * 1650mm * 530mm

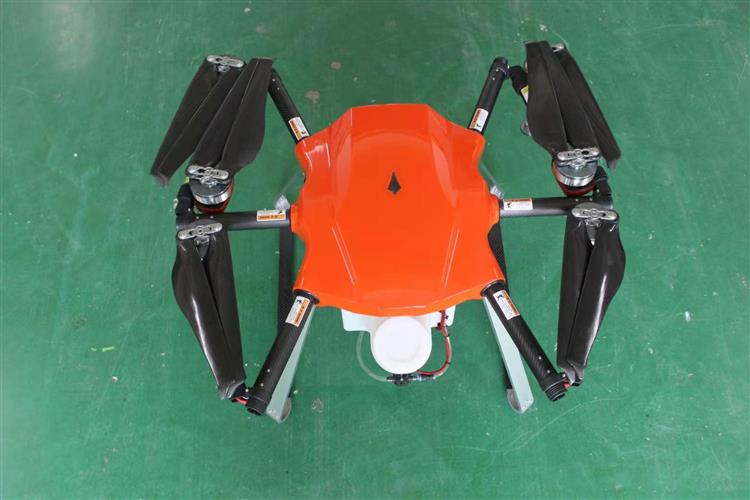

Folded size
1000mm * 520mm
Container capacity
22L
Power weight
6.3KG
Unloaded drone
19KG
Fully loaded drone
50KG
Spray distance test
Pump type
nozzle
test
Spray range
Brushless Motor
Silicone lengthened single nozzle 1.5 cm
Height 3m,speed 5-6m/s
8m
Height 2.5m,speed 5-6 m/s
7m
Height 2m,speed 5-6 m/s
6.5m
Battery life
No load
44.4v 20-25 minutes
Fully loaded
44.4v 9-10minutes
Configuration
power supply
Haoying X9
Flight control
K + +
Spraying system
High pressure spray
Maximum pressure of pump
1mPa
Spray flow
1.5-3kg/min (maximum 4 kg/min)
effectiveness
1000-2000m2/min

Details

Features
1. Android mobile phone ground station, easy to use
2. PC ground station, voice broadcast
3.Support route planning, fully autonomous flight route, support AB point operation
4.Support one-button take-off and landing without manual intervention, 100% safe
5.Continue spraying at the breaking point, no medicine/low power, it returns
6.Dose detection can be set to automatically record the breakpoint and return to the breakpoint
7.Battery detection, can automatically record breakpoints when the battery is low
8.Microwave fixed altitude radar, fixed altitude stable flight, support ground type flight
9.Fence function, log storage function, road lock function, no-fly zone function'
10.Vibration protection, lost star protection, drug shutdown protection
11.Motor sequence detection function, direction detection function
12.Double pump mode
