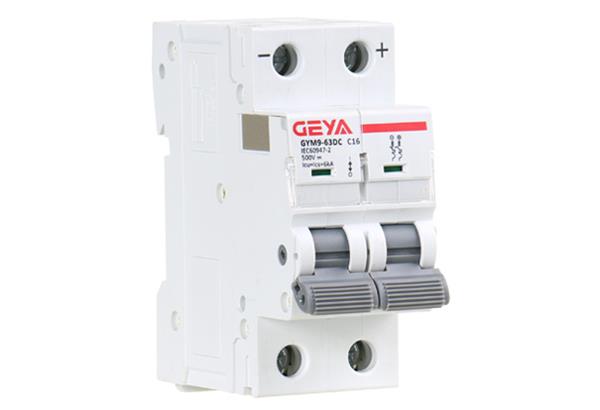

DC MCB

• ID: MCB

• Status: Con hang

• Viewed: 1276

• Price: ---

SENT INQUIRY ADD TO CART

* Short-circuit protection
* Overload protection
* Close quickly
* high breaking capacity
* Isolation function
* Indication function of contact position
* Transparent cover designed to carry label.
* Support 35mm Din – rail installation
* Support top incoming and bottom outgoing wiring type, or bottom incoming and top outgoing wiring type.
* Able to select electrical accessories and achieve distant indication of MCB condition: breaking, closed, and fault tripping.
* Able to select electrical accessories and realize under-voltage and over-voltage protection of MCB and distant shunt release.

DC SPD 3P

Giá: Liên hệ

Detail

Tình trạng: Còn hàng

Consistent pluggability(even for N/PE spark gap) Own developed technology to manufacture MOV Thermal disconnect device for each individual connector Optical,mechanical status indication for the individual arresters With or without floating remote indication contact Suitable for almost all network conflgurati ons Din rail mountable (35 mm)
DC SPD 2P

Giá: Liên hệ

Detail

Tình trạng: Còn hàng

Consistent pluggability(even for N/PE spark gap) Own developed technology to manufacture MOV Thermal disconnect device for each individual connector Optical,mechanical status indication for the individual arresters With or without floating remote indication contact Suitable for almost all network conflgurati ons Din rail mountable (35 mm)

Detail: DC MCB

lectrical features
Rated current In	1-63A

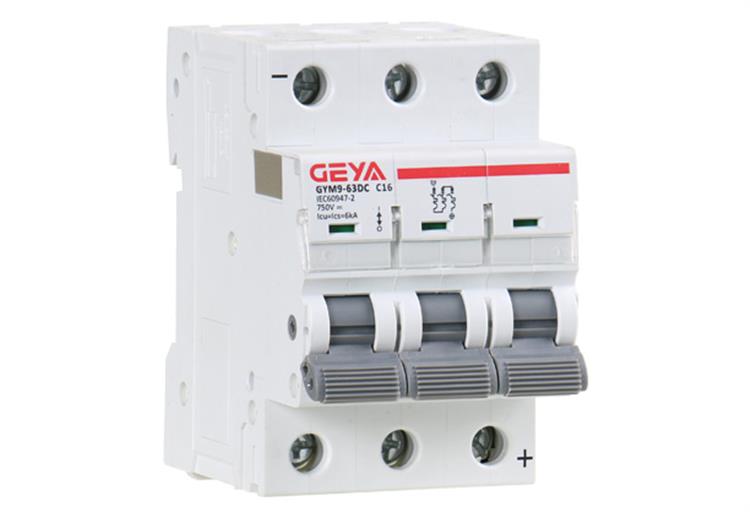

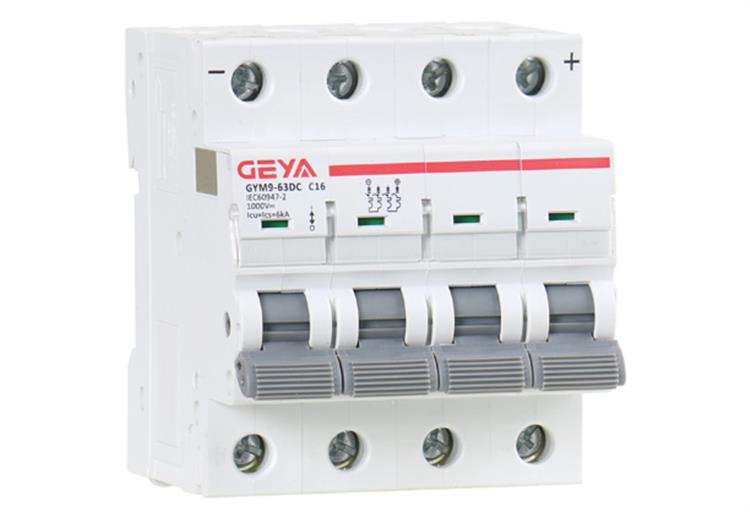

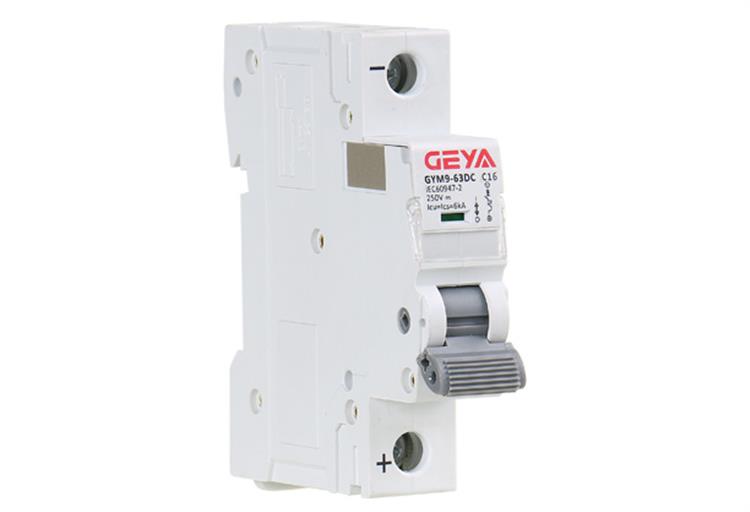

Poles	1P 2P 3P 4P
Rated voltage Ue	1P: 250V~ 2P:500V, 3P:750V,4P:1000V
Rated breaking capacity	6kA
Rated impulse withstand voltage(1.2/50) Uimp	6kV
Dielectric test voltage at and ind. freq.for 1min	2.5kV
pollution degree	2
Thermo-magnetic release characteristic	B :6In±20%；C ：12In±20%
Mechanical life	10000
Contact position indicator	Yes
Installation
Protection degree	IP20
Reference temperature for setting of thermal element	30℃
Ambient temperature (with daily average ≤35℃)	-5~+40℃
Storage temperature	-35~+70℃
Terminal Connection type	Cable/Busbar
Terminal size top/bottom for cable	25mm
Tightening torque	3.0N
Connection	Top and bottom
