Metal Gear DS3218Pro High Speed servo

Metal Gear DS3218Pro High Speed servo

• ID: DS3218Pro

• Category: Servo Motor

• Viewed: 1654

• Price: 320,000 VND

SENT INQUIRY ADD TO CART

Waterproof SSG RC Servo DS3218 Pro Metal Gear DS3218Pro High Speed 20KG 1/8 1/10 Scale Cars Digital Servo For RC
Model: DS3218 PRO (high speed version of the DS3218MG)
Torque: 21kg.cm @5V and 23.5kg.cm @6.8V
Speed: 0.12S/60° @5V and 0.09S/60° @6.8V
Operating Voltage: 4.8 ~ 6.8 Volts
Dead brand: 3μs

XS-Multirotor Power Type X4112S

Giá: Liên hệ

Detail

Tình trạng: --
Sunnysky V8117

Giá: Liên hệ

Detail

Tình trạng: --
Sunnysky X7020

Giá: Liên hệ

Detail

Tình trạng: --
Sunnysky X5230

Giá: Liên hệ

Detail

Tình trạng: --
X8 Power System for Agricultural Drones

Giá: Liên hệ

Detail

Tình trạng: --
Hobbywing X9 motors Power System 9616 110KV 12-14S with ESC+Propeller+Motor for 10L/16L/22L multirotor Agricultural Drone

6,000,000 đ

Detail

Tình trạng: --

Hobbywing X9 motors Power System 9616 110KV 12-14S with ESC+Propeller+Motor for 10L/16L/22L multirotor Agricultural Drone Max. Thrust ...
X8 Power System for Agricultural Drones

3,900,000 đ

Detail

Tình trạng: --
X6 Power System for Agricultural Drones

3,600,000 đ

Detail

Tình trạng: --

...
DS3230MG Waterproof DS3230 High Speed Metal Gear With 25T Servo Arm 1/8 1/10 Scale Cars 30KG Digital Servo For RC

380,000 đ

Detail

Tình trạng: --

1.Working voltage range: 4.8 - 6.8V 2.Command signal: Pulse width modification 3.Amplifier type: Digital controller 4.Pulse width range: 500~2500usec 5.Neutral position: 1500usec 6.Running degree: 180±3°(PWM 500~2500usec) or 270±3°(PWM 500~2500usec) 7.Dead band width: 3 usec 8.Rotating direction Counterclockwise: (when 1000~2000usec)
Brushless Outrunner Motor N5065 270KV 1665W For DIY Skate Board 1820W 320KV

650,000 đ

Detail

Tình trạng: --

Kv value: 320rpm/v ESC: 80A Power:1820W Shaft size:Dia.8 x 20mm The motor length: 78mm The motor diameter: 50mm ...
30KG Coreless Waterproof Metal Gear 180 Degrees Car Helicopter Boat Models Coreless Digital Servo For RC

340,000 đ

Detail

Tình trạng: --

Operating Voltage: DC6.0? 7.4V Operating speed (6.0V): 0.13 seconds / 60 degrees Operating speed (7.4V): 0.11 sec / 60 degrees Stall Torque (6.0 V): 66.2 lbs (30 kg). cm (239.05 oz / in) Stall Torque (7.4 V): 78.5 lbs (32 kg). cm (294.75 oz / in) Operating frequency: 1500μs/ 330hz
65KG 6V-7.4V Metal Gear Waterproof with Servo Arm Cars Model Helicopter Boat Digital Servo for RC

820,000 đ

Detail

Tình trạng: --

Operating Voltage: 6V-7.4V Operating Speed (6.0V): 0.16sec / 60 degree Operating Speed (7.4V): 0.14sec / 60 degree Stall Torque (6.0V): 55kg.cm Stall Torque (7.4V): 65kg.cm Stall Current: 10.0A (6.0V) / 13.4V (7.4V)
High Torque Blue Coreless Motor Metal Stainless Steel Gear Waterproof Roboti Servo DS3235 Digital Servo For RC

515,000 đ

Detail

Tình trạng: --

Operating voltage range: 5-7.4V Operating speed ( 5.0V ): 0.1 3sec/60 degree Operating speed ( 6.0V ): 0.12 sec/60 degree Operating speed ( 7.4V ): 0.11 sec/60 degree Stall torque ( 5.0V ): 29kg/cm Stall torque ( 6.0V ): 32kg/cm Stall torque ( 7.4V ): 35kg/cm
High Speed Stainless Steel Metal Gear Coreless Motor Waterproof Digital Blue Robotic DS3225 25KG Servo For RC

510,000 đ

Detail

Tình trạng: --

Operating Voltage: 5.0 ~ 7.4 DC Volts Torque: (kg-cm): 22kg-cm (5v), 24kg-cm (6v), 25.5kg-cm (7.4v) ...
Metal Gear Android Robot Digital Servo Motor 15kg DS3115 Servos Robot Diy Digital Servo For RC

370,000 đ

Detail

Tình trạng: --

Angle: 270 degree Maximum PW: 500-2500μs Working Voltage: DC 4.8-7.2V Voltage curret:>150mA Operating Speed: (4.8V) 0.16 sec/60° Operating Speed: (6.0V) 0.14 sec/60° Stall Torque: (4.8V) 13.5 kg.cm Stall Torque: (6.0V) 15 kg.cm Stall Torque: (7.2V) 17 kg.cm
DS3218MG 20KG Waterproof Large Torque High Voltage 5V-6.8V Digital Metal Shell Car Robot With 25T Arm Servo DS3218 For RC

310,000 đ

Detail

Tình trạng: --

Dead Band: 3μsec Operating Voltage: 4.8V~6.8Volts Operating Speed (5V): 0.16sec / 60° at no load Operating Speed (6.8V): 0.14sec / 60° at no load Stall Torque (5V): 19 kg/cm (263.8oz/in) Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
High Torque DS5160 SSG Servo With 25T Arm Model Parts 1/5 RC Car Helicopter 60KG Digital Servo For RC

650,000 đ

Detail

Tình trạng: --

Speed: 0.17sec/60 degree at(6v) 0.15sec/60 degree at(7.4v) 0.13sec/60 degree at(8.4v) Torque: 58kg.cm.at(6v) 65kg.cm.at(7.4v) 70kg.cm.at(8.4v) Voltage: 6v-8.4v Dead Zoon setting:3 Microseconds

Detail: Metal Gear DS3218Pro High Speed servo

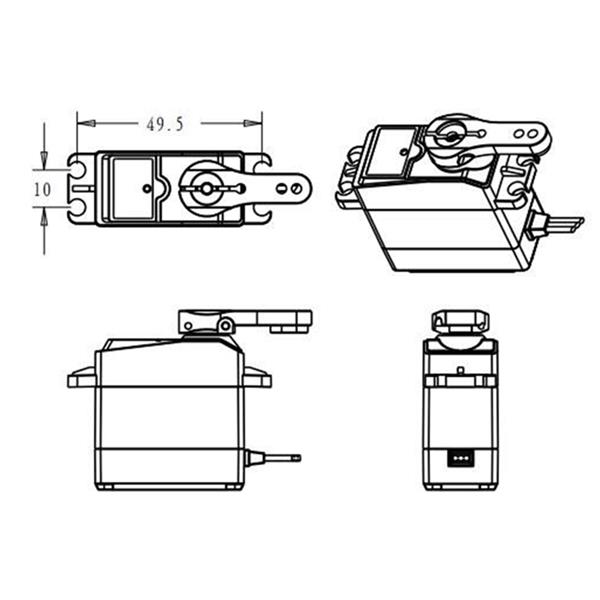

1. Size: 40.0*20.5*40.5mm

2. Weight: 58g±2g

3. Limit angle: 360°

4.Bearing: 2BB

5.Horn gear spline: 25T Diameter:5.9mm

6.Case : Engineering plastics+Aluminum alloy

7.Connector wire: 320mm±5mm

8.Motor: Carbon brush motor Electrical
Specification:

1.Working voltage range: 4.8 - 6.8V

2.Command signal: Pulse width modification

3.Amplifier type: Digital controller
4.Pulse width range: 500~2500usec

5.Neutral position: 1500usec

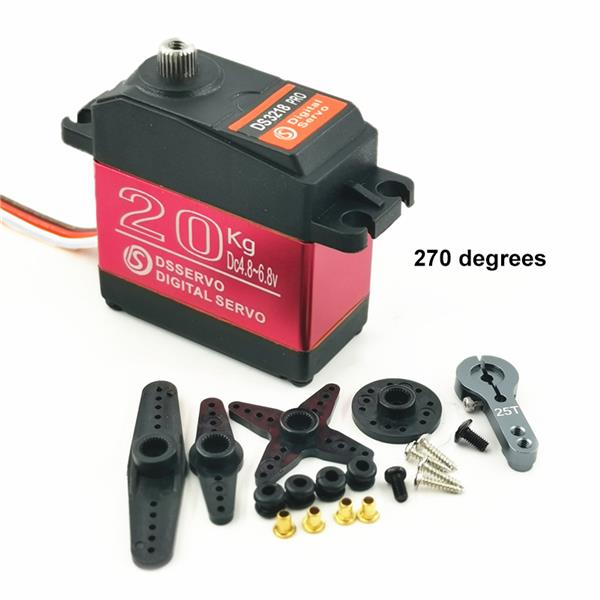

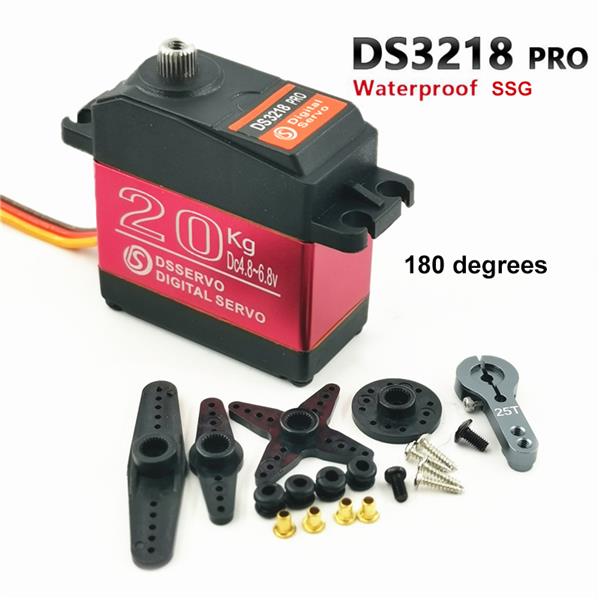

6.Running degree: 180±3°(PWM 500~2500usec) or 270±3°(PWM
500~2500usec)

7.Dead band width: 3 usec

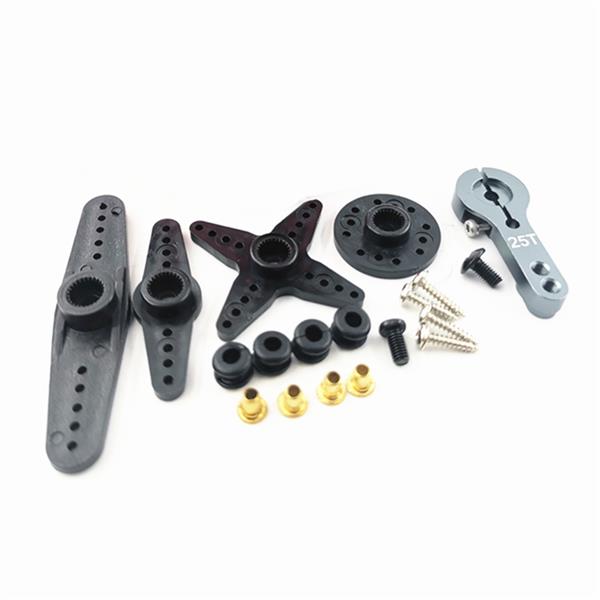

8.Rotating direction Counterclockwise: (when 1000~2000usec)Package information: Package weight: 80g/pcs Plastic Bag Package Package list:5pcs/lot 5x DS3218pro Digital Servo 5x 25T Metal Servo Arm and A ccessory

Metal Gear DS3218Pro High Speed servo
