X6 Power System for Agricultural Drones

X6 Power System for Agricultural Drones

• ID: X6

• Category: Servo Motor

• Viewed: 2982

• Price: 3,600,000 VND

SENT INQUIRY ADD TO CART

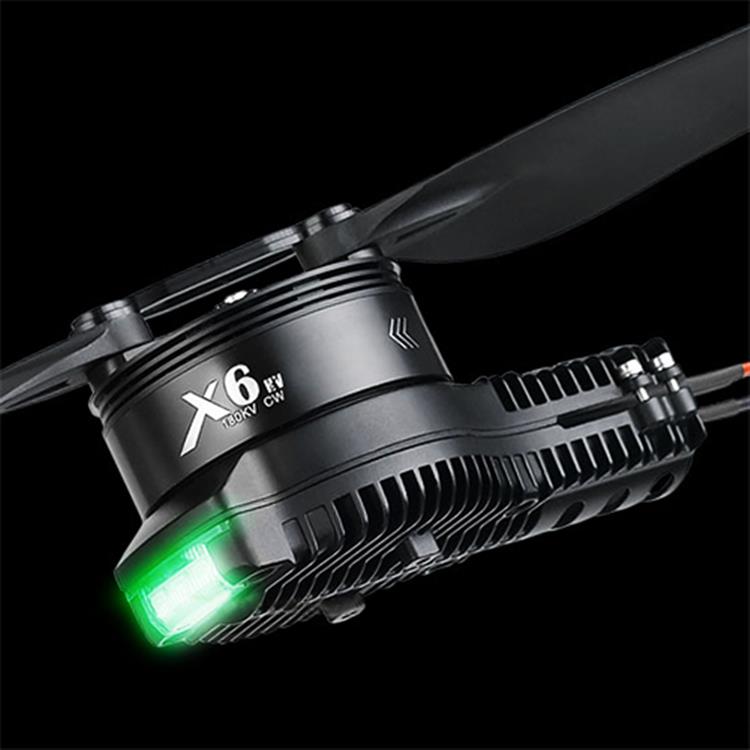

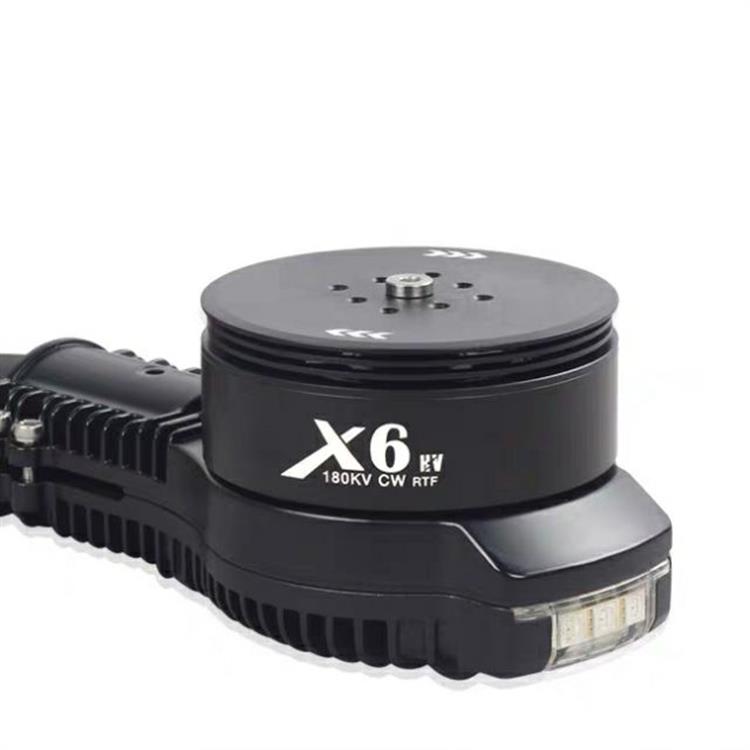

Hobbywing Xrotor pro X6 power system integrates motor ESC and motor mounting bracket, which is easy to install and use. Motor mounting bracket can choose 28mm or 30mm Your purchase includes: Hobbywing Xrotor pro X6 motor and ESC combined with 2388 folding propeller

Specifications

Max. Thrust

12kg/Axis (48V, Sea Level )

Recommended LiPo Battery

12S LiPo

Recommended Takeoff Weight

3-5kg/Axis(48V，Sea Level)

Combo Weight

720g

Waterproof Rating

IPX7

Operating Temperature

-20℃~50℃

Motor

Outer Diameter

70mm

KV Rating

180KV

O.D of Carbon Fiber Tube

φ30mm/φ28mm (*Tube Adapter will be Needed)

Bearing

Imported Bearing

ESC

Recommended LiPo Battery

6-12S LiPo

PWM Input Signal Level

3.3v/5v (Compatible )

Throttle Signal Frequency

50-500Hz

Operating Pulse Width

1100~1940μs (Fixed or cannot be Programmed )

Max. Input Voltage

52.2V

Max. Input Current (Cont.)

80 A(w/ Good Heat Dissipation )

Max. Peak Current (10s)

100 A (w/ Good Heat Dissipation )

BEC

No

Nozzle Mounting Holes

φ28.4mm-2*M3

Propeller

Diameter×Pitch

2388

Weight

91g (w/ Propeller Adpater, Single Blade: 36g)
